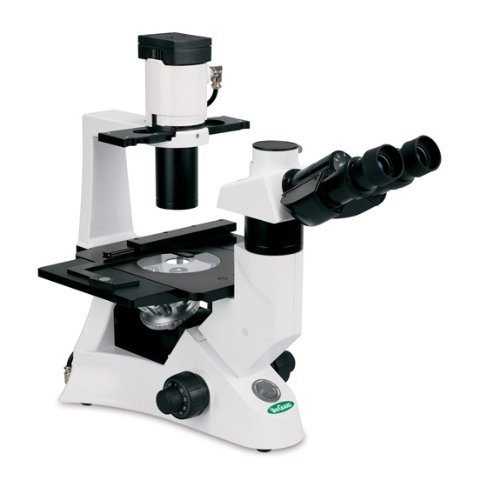

VanGuard 1493INI Brightfield/Phase Contrast Inverted Microscope with Trinocular Head, Halogen Illumination, 4X/10X/20X/40X Magnification Reviews
Other Picture
VanGuard 1493INI Brightfield/Phase Contrast Inverted Microscope with Trinocular Head, Halogen Illumination, 4X/10X/20X/40X Magnification Feature
- VIOS infinity-corrected optics
- 30W Variable quartz halogen illumination
- High-eyepoint eyepieces (FD 22mm) with rubber eyecups
- Measures 540mm length by 300mm width by 480mm height
- 5-Year optical/mechanical, 1-year electrical warranty
Featuring vivid, infinity-corrected optics, the inverted microscopes provide life science professionals high performance for tissue culture applications. Built around an industry-leading full-size frame, the 1400INi Series models eliminate the fatigue and strain associated with working long hours over a microscope. Low-position focusing controls and long drop-down X-Y controls ensure simple, consistent, and comfortable use. Advanced ergonomics, 400mm eyepoint height. Multiple stage inserts for plates, dishes, vials and slides. Brightfield and phase contrast type, objective magnification: 4X, 10X, 20X, 40X, objective type: plan achromatic, infinity, LWD. Optional fluorescence package: fluorescence upgrade kit. Interpupillary adjustment: 48 - 75 mm, dioptric adjustment: -5 to +5, camera port: 20/80 Split. Eyepiece field diameter: 22 mm, nosepiece: 5-position, reverse pitch. Objectives: plan achromatic 4X (0.10 N.A., 25.2 mm W.D.), 10X (0.25 N.A., 11 mm W.D.); 20X (0.25 N.A., 6 mm W.D.); 40X (0.60 N.A., 3.2 mm W.D.). Optional Objectives: 4X, 10X, 20X, 40X fluorite objective. Stage: rectangular 250 x 160 mm (300 x 250 mm with stage extension) mechanical, drop-down, right-hand, rack and pinion X-Y control, 120 x 80 mm cross travel range, chemical-resistant finish. Stage inserts: for 96-well plates, HLA/terasaki plates, 3 x 1 in glass slides, 65/54/35 mm petri dishes. Focusing: coaxial, ultra low position, coarse/fine controls, tension adjustment, safety auto-stop, 40 mm focusing range, 0.002 mm precision. Condenser: 0.30 NA with Iris Diaphragm, rack and pinion focusing control. Sample clearance1: 150 mm, 75 mm, base; 320mm x 240mm, anti-skid rubber feet. Body: ergonomic, stain-resistant enamel finish, weight: 11 kg, voltage: 110 V. Supplied with: specimen plate holders, dispersion filter, blue filter, spare lamp, spare fuses (2), eyecups (2), dust cover and operation manual.
