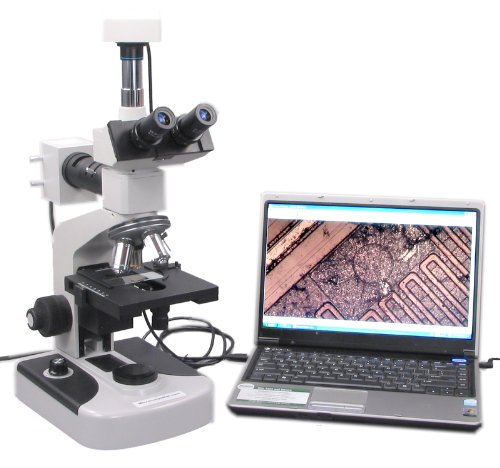

Trinocular Metallurgical Microscope 40X-1600X with 3MP Camera

Trinocular Metallurgical Microscope 40X-1600X with 3MP Camera Reviews

Other Picture

Trinocular Metallurgical Microscope 40X-1600X with 3MP Camera Feature

Model: V83MC30
Head: 30degrees;Inclined 360degrees;rotatable trinocular
Nosepiece: quadruple
Eyepieces: wide field WF10X and WF16X
Objective: plan field achromatic DIN 4x, 10x, 40x(S), 63x(S), 100x(S, Oil)
Total magnification: 40x-64x-100x-160x-400x-630x-640x-1000x-1008x-1600x
Reflected illuminator: 6V/20W halogen
Large stain-resistant double layer stage 5-1/2inch x 5-1/2inch (140mm x 140mm)
Large stage moving range: 2-13/16inch x 1-17/32inch (72mm x 40mm)
Stage vertical stroke (focusing travel distance): 2inch (51mm)
Metal stage plate dimension: 3-1/8inch x 1-9/16inch (80mm x 40mm)
Focus adjustment: Coaxial coarse and fine knobs on both sides with adjustable tension control
Camera pixels: 3MP (2048x1536)
Camera sensor chip size: 1/2inch
Camera S/N Ratio: >45dB
Platform compatiblity of camera: Windows 2000, XP, Vista 32-bit (not Vista 64-bit)
Power supply: 100V-240V, 50/60Hz universal (US and Canada plug)
Dimension: 12inch x 8inch x 19inch (30.5cm x 20.3cm x 48cm)
Net weight: 18lb 10oz (8.5kg)
Shipping package weight: 28lb (13kg)

Packing List: Trinocular metallurgical microscope;5 plan field achromatic objectives: 4x, 10x, 40x(spring), 63x(spring), 100x(spring, oil);Eyepiece: a pair of WF10X and a pair of WF16X;3 metal stage plates;EPI illumination system;3MP USB 2.0 Camera with reduction lens;Software disc;Camera adapter for stereo microscopes;Power cord (US and Canada standard);3 color filters, yellow, green, blue;Extra halogen bulb (6V/20W);A bottle of immersion oil;Dust cover;Manual
